Orvibo Smart Anti-Glare Led Recessed Lights- Smart Lighting System

Orvibo Smart Anti-Glare LED Recessed Light, Spotlight, Grillelight, Floodlight &  Magnetic Linear Light

98Ra* color render index Comparable to natural light; 10000 level silky dimming Nature like sunrise and sunset；Covering three major lighting categories；Aviation aluminum casting 10 years lifespan

Product Specification of Orvibo Smart Magnetic Track Light System

Input voltage: 48V
Main material: aviation aluminum; PC
Color rendering index: Ra>90
Light flux: ≥850lm/2700-6000k control
Communication protocol: Zigbee single lamp single control
Function: cooperate with the gateway to realise 10,000-level brightness adjustment and voice control, scene control, and mobile APP control

Magnetic Floodlight 8W

 Magnetic Floodlight 15W

• Size: 435*22*25mm
• Viewing Angle: 110°±3°
• Luminous Flux: ≥810lm

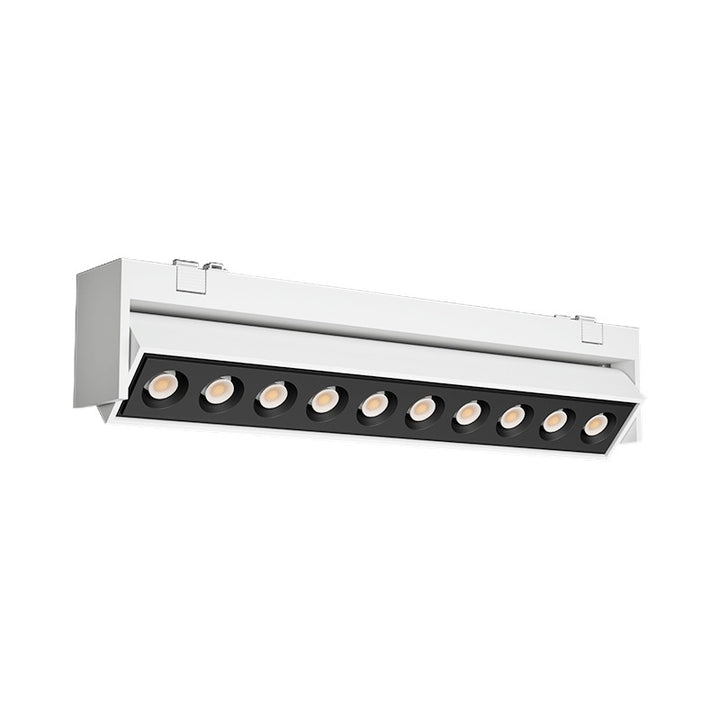

Magnetic Folding Grillelight 12W

• Lamp size: 222mm x 22.5mm x 110mm
• Beam angle: 24°
• Luminous flux: 600 lm

Magnetic Linear Spotlight 8W

• Size: 220*22*25mm
• Viewing Angle: 110°±3°
• Luminous Flux: ≥368lm

Magnetic Linear Spotlight 15W

• Size: 435*22*25mm
• Viewing Angle: 70°±3°
• Luminous Flux: ≥1120lm

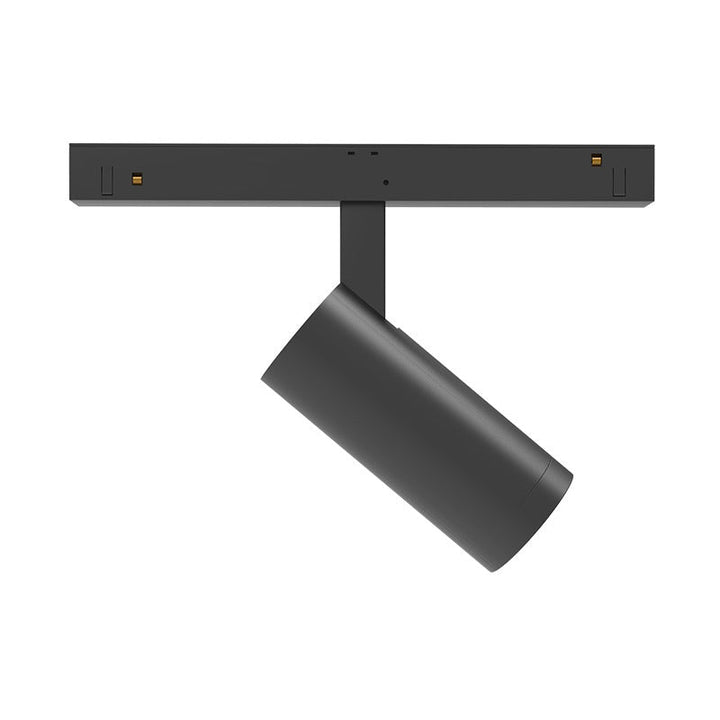

Magnetic Track Spotlight 8W

• Size:  Φ44*94mm
• Viewing Angle: 24°±3°
• Luminous Flux: ≥350lm

 Magnetic Track Spotlight 15W

• Size:  Φ55*110mm
• Viewing Angle: 24°±3°
• Luminous Flux: ≥850lm

Installation
1. It is necessary to reserve a special track for magnetic suction lamps. The ceiling must be the original concrete or solid wood board ceiling. It is forbidden to install on the pure gypsum board ceiling.
2. The minimum ceiling space for concealed ceiling installation is 5cm

Wiring
1. It needs to be reserved according to the requirements of the magnetic track power supply
