Orvibo Magnetic Recessed Track and Accessories
The outer diameter of the track is 27.6mm wide and the depth is 52.5mm, and the belt edge width is 71mm. The ceiling needs to be a solid wood ceiling or an original concrete ceiling, each 2 meters long, and can be cut freely according to the needs of the site
Product Specification of Orvibo Magnetic Recessed Ultra-thin Track Lights

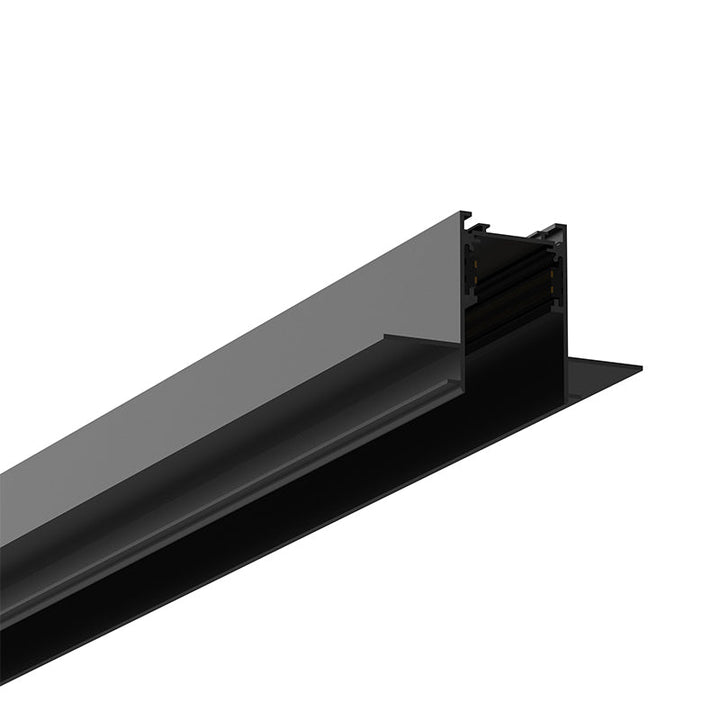

Recessed Magnetic Track
Size: 27*52*1000 mm
Size: 27*52*2000 mm
Surface mounted Magnetic Track
Size: 28*29*1000mm
Size: 28*29*2000mm

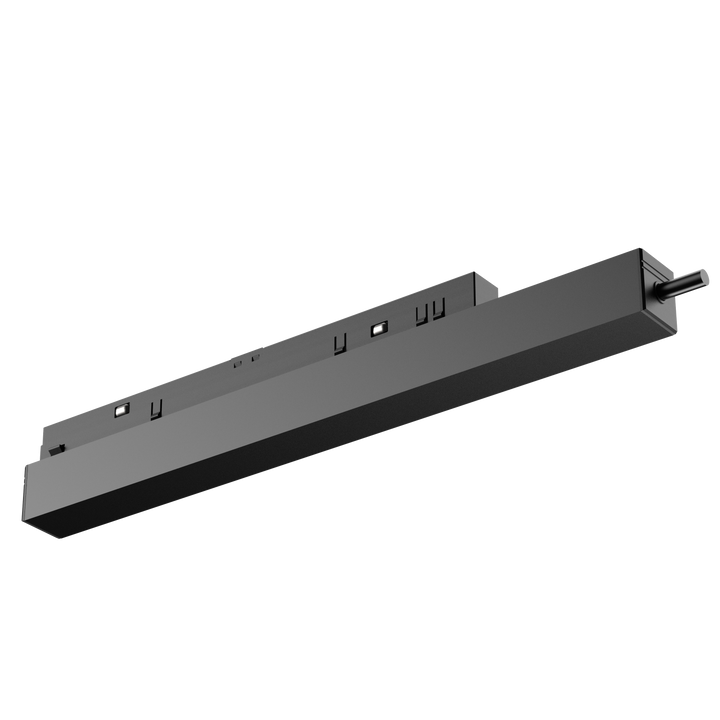

Magnetic Embedded Power Supply 150W
Input Voltage：AC180V-240V
Output Voltage:DC48v
Output: 150W
Size: 295mm*22mm*24.5mm
Installation
There are now two specifications of rails, 2m and 1m, and users can cut them according to the actual length on site.

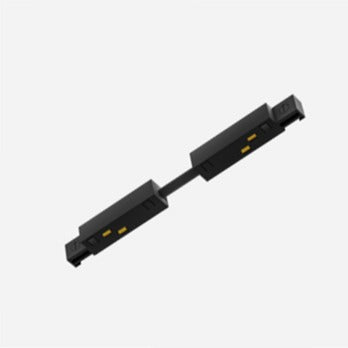

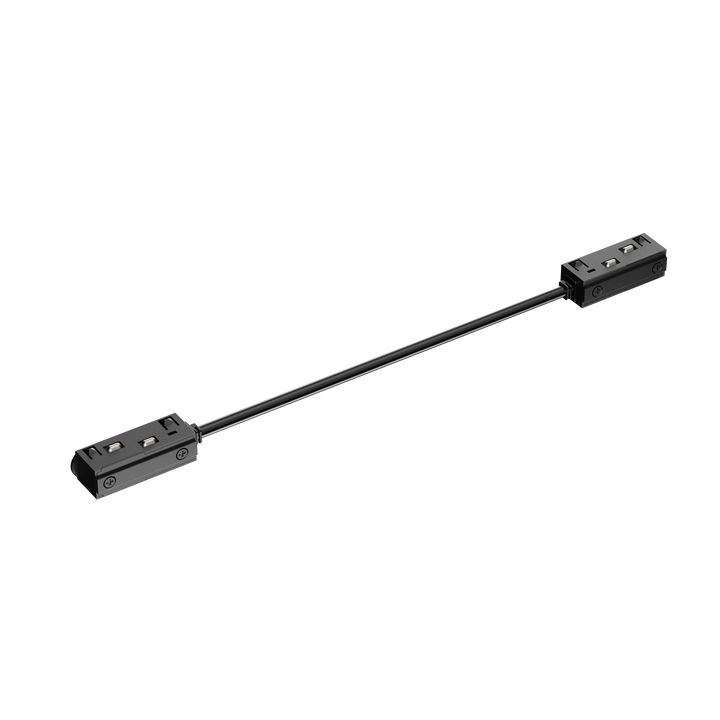

The connection between rails requires the use of accessories: magnetic rail-universal I-type electrical connector.

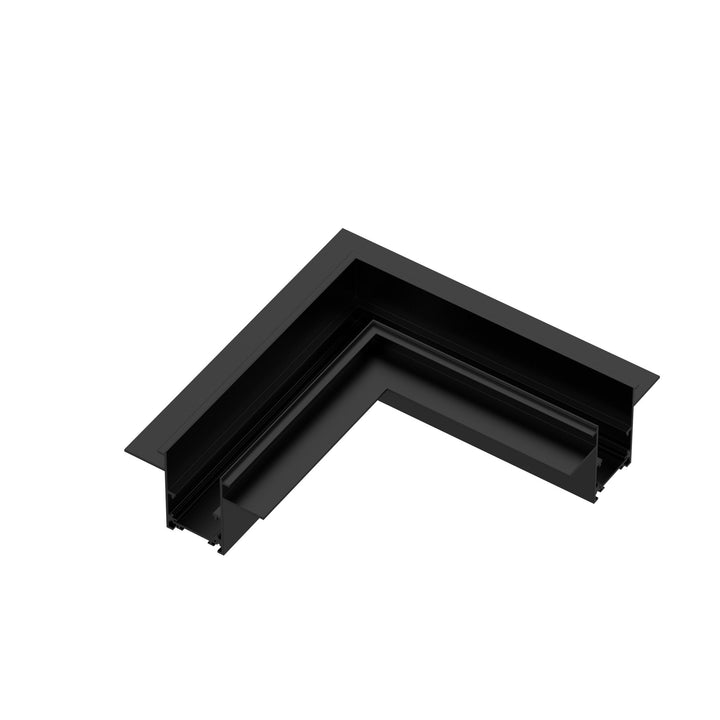

Accessories are required to connect the track to the track corner: magnetic track-universal L-shaped connector, corner accessories
Wiring
1. Reserve AC220V zero fire ground wire at the end of the track
