Orvibo Smart Led Strip Lights: USB Plug RGB Smart Neon Strip Light
Orvibo Smart Led Strip Lights: RGB Neon Strip Light Immerse Your Senses with Sound and Picture Atmosphere Light Strip is a home atmosphere lighting product that synchronises light effects with sound and picture....
Orvibo Smart Led Strip Lights: RGB Neon Strip Light
Immerse Your Senses with Sound and Picture Atmosphere Light Strip is a home atmosphere lighting product that synchronises light effects with sound and picture. The color and the TV screen are linked to achieving linkage, millisecond-level linkage with the same screen for 4D immersive viewing experience, 120Hz high-brush and shocking e-sports must-have atmosphere artifacts, and high-sensitivity pickup microphone Music rhythm.
Product Specification of Smart Led Strip Light-Neon Light
RGB Smart Neon Strip Light (120Hzversion) 3.06m x2
Input voltage: AC 100-240V ~ 50/60Hz (power adapter)
Rated power: 38W
Wireless communication: Wi-Fi + Bluetooth
Display adaptation: size - 90 inches and below, resolution - 720P and above
Support screen ratio: 16: 9
Compatible HDMI protocol: 2.0b
Support the highest refresh rate: 1920x1080P@120Hz (make sure both the monitor and HDMI device support it)
Support the highest resolution: 3840x2160P (4K) @60Hz
Power adapter cable length: 1.5 meters

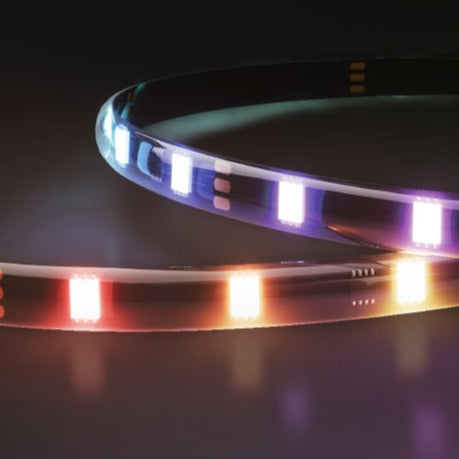

Light strip specifications: transparent surface, glue drop process, 3.06m/strip, LED - 144pcs/strip
Specifications of control box: matte black, length 145mm * width 85mm * front height 12mm * rear height 23mm, ABS+PC
Remote control: APP, MixPad
Protection class: IP20
Fire rating: V1
Working temperature: 0℃-40℃
Ambient humidity: 5%-55% RH
Color:RGB
Warranty time: three years
Supported devices: TV: Mi Box, Small Magic Box, Tencent Aurora Box, Huawei Wyatt Box, etc.
Game consoles: PS5, PS4, Xbox, Switch
Computer: desktop, notebook

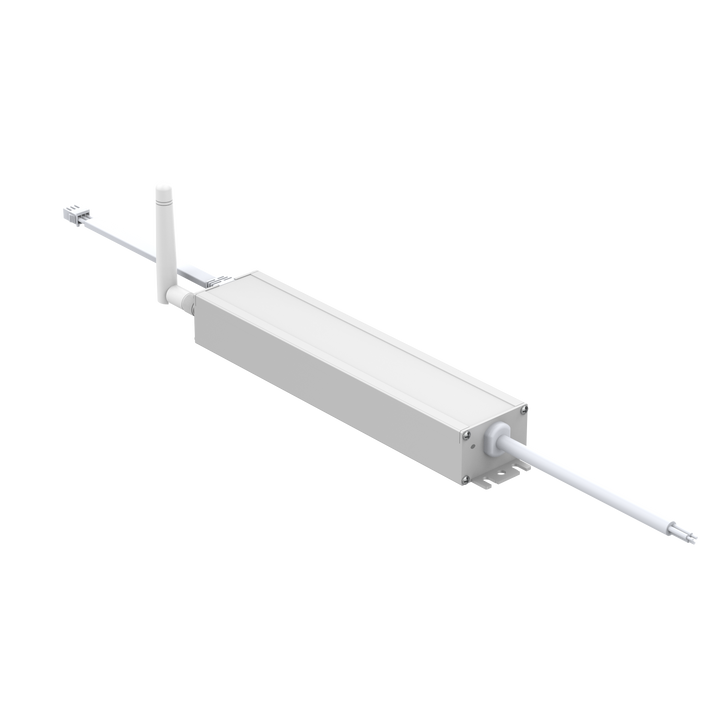

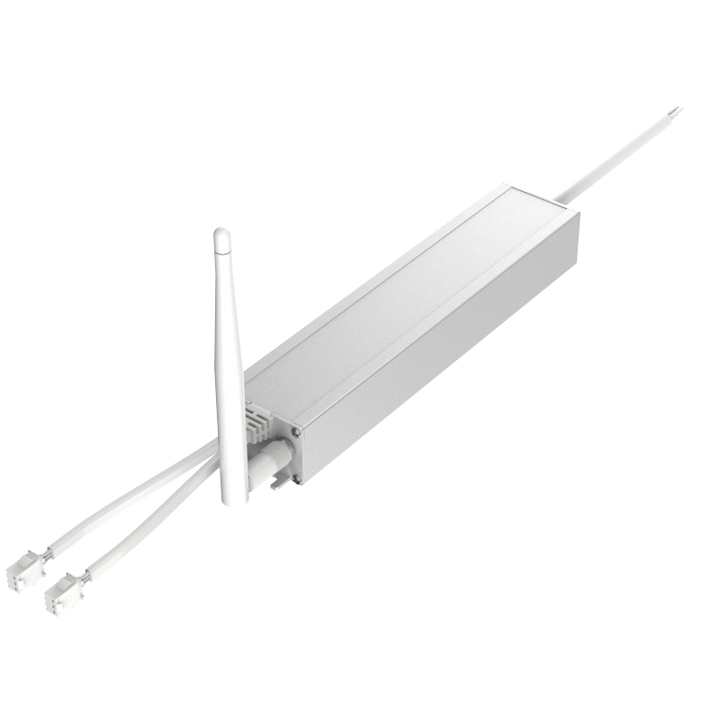

Strip Light Power Supply Controller 36W/72W/120W
Product size: 202*40*27mm/233*40*33mm/328*51*35mm
Communication protocol: Zigbee
Input voltage: AC200-240V 50/60Hz
Power factor: ≥0.9
Harmonic distortion: ≤20%
Color temperature range: 2700K-6500K
It needs to be equipped with high-performance intelligent color temperature light strips, profile color temperature light strips or SOPRO intelligent COB ultra-bright light strips and gateways to achieve 10,000-level brightness, color temperature, voice, scene, and APP control.
Third-party color temperature light strips are not supported to be connected to this controller.
1. Reserve the 220v power supply zero fire and ground wire (an effective ground wire interface must be reserved).
2. The width of the inner light trough is not less than 8cm, the depth is not less than 5cm, and the distance between the outer reflective light trough and the wall is not less than 15cm.
3. If installed in a round light trough, the control must be installed in the inspection opening, and two sets of 3*1.0 power cords should be routed from the position of the light controller to the light trough.
Wiring scheme
1. Reserve the 220V power supply zero fire and ground wire (an effective ground wire interface must be reserved);
2. If installed in a round light trough, the control must be installed in the inspection opening (lay two sets of 3*1.0 power cords from the light controller to the light trough.
