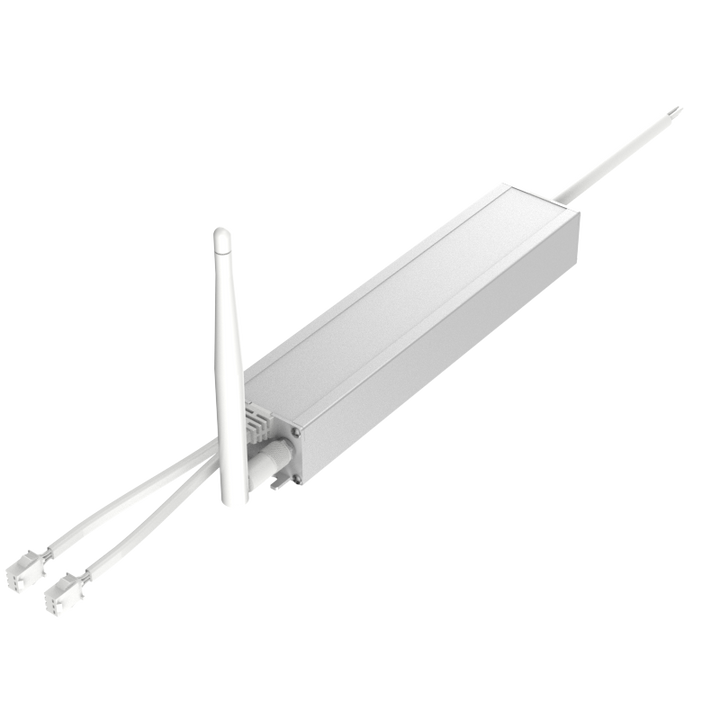

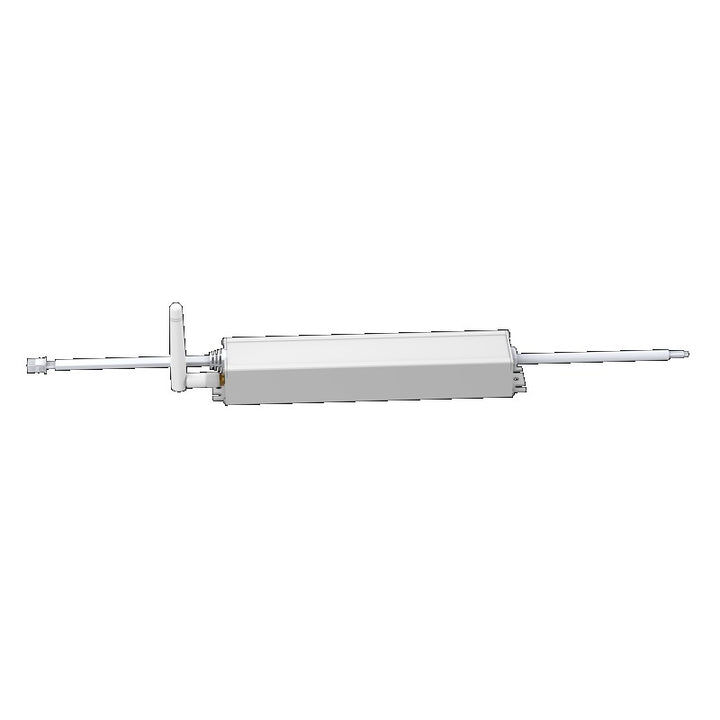

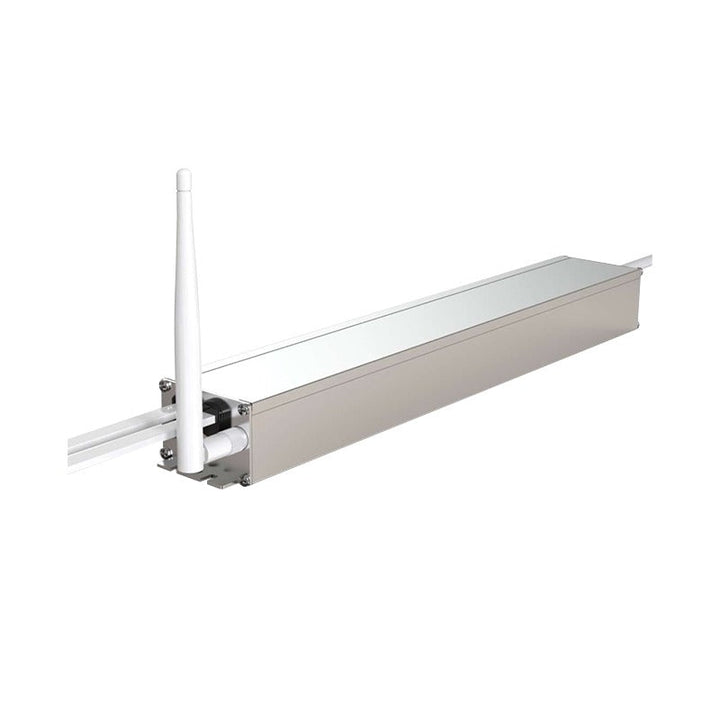

Orvibo Zigbee LED Strip Light Controller (36W/72W/120W)
Orvibo Zigbee LED Strip Light Controller (36W/72W/120W) Smart light strip controller is used with Oribo smart light strip products to typically provide the ability to automatically adjust a lighting device's output Product Specifiation...
Description
Orvibo Zigbee LED Strip Light Controller (36W/72W/120W)
1. Reserve the 220v power supply zero fire and ground wire (an effective ground wire interface must be reserved).
2. The width of the inner light trough is not less than 8cm, the depth is not less than 5cm, and the distance between the outer reflective light trough and the wall is not less than 15cm.
3. If installed in a round light trough, the control must be installed in the inspection opening, and two sets of 3*1.0 power cords should be routed from the position of the light controller to the light trough.
Wiring scheme
1. Reserve the 220V power supply zero fire and ground wire (an effective ground wire interface must be reserved)
2. If installed in a round light trough, the control must be installed in the inspection opening (lay two sets of 3*1.0 power cords from the light controller to the light trough.
Orvibo Zigbee LED Strip Light Controller (36W/72W/120W)
Smart light strip controller is used with Oribo smart light strip products to typically provide the ability to automatically adjust a lighting device's output
Product Specifiation of Orvibo Zigbee Strip Light Controller
- Product size: 202*40*27mm/ 233*40*33mm/328*51*35mm
- Communication protocol: Zigbee
- Input voltage: AC200-240V 50/60Hz
- Power factor: ≥0.9
- Harmonic distortion: ≤20%
- Color temperature range: 2700K-6500K
- It needs to be equipped with high-performance intelligent color temperature light strips, profile color temperature light strips or SOPRO intelligent COB ultra-bright light strips and gateways to achieve 10,000-level brightness, color temperature, voice, scene, and APP control.
- Third-party color temperature light strips are not supported to be connected to this controller.
1. Reserve the 220v power supply zero fire and ground wire (an effective ground wire interface must be reserved).
2. The width of the inner light trough is not less than 8cm, the depth is not less than 5cm, and the distance between the outer reflective light trough and the wall is not less than 15cm.
3. If installed in a round light trough, the control must be installed in the inspection opening, and two sets of 3*1.0 power cords should be routed from the position of the light controller to the light trough.
Wiring scheme
1. Reserve the 220V power supply zero fire and ground wire (an effective ground wire interface must be reserved)
2. If installed in a round light trough, the control must be installed in the inspection opening (lay two sets of 3*1.0 power cords from the light controller to the light trough.
Orvibo Zigbee LED Strip Light Controller (36W/72W/120W)
$99.00
LED Strip Light Controller 36W
