Orvibo Smart Ultra-thin Surface-Mounted Magnetic Track Light
The blade ultra-thin smart magnetic track light integrates the four major technological innovations of "ultra-thin", "anti-glare", "intelligence" and "safety", and achieves extreme beauty in surface-mounted products; Achieved anti-glare eye protection; compatible with 10,000-level dimming and color adjustment and single-light intelligent control; only 6mm track magnetic suction + buckle safety guarantee
Product Specification of Smart Ultra-thin Surface- Mounted Magnetic Track Light
1. Power supply: DC48V
2. Color rendering index: Ra>98
3. Color temperature range: 2700K~6000K
4. Communication method: Zigbee single lamp single control
5. Photo mode: down-illumination
6. Material: aviation aluminum + PC
7. Control method: language, touch screen, scene opening, APP
Magnetic Ultra-thin Grillelight S20 (10W )
Size: 416*30*12mm
Beam angle: 24°
Luminous Flux: >600lm

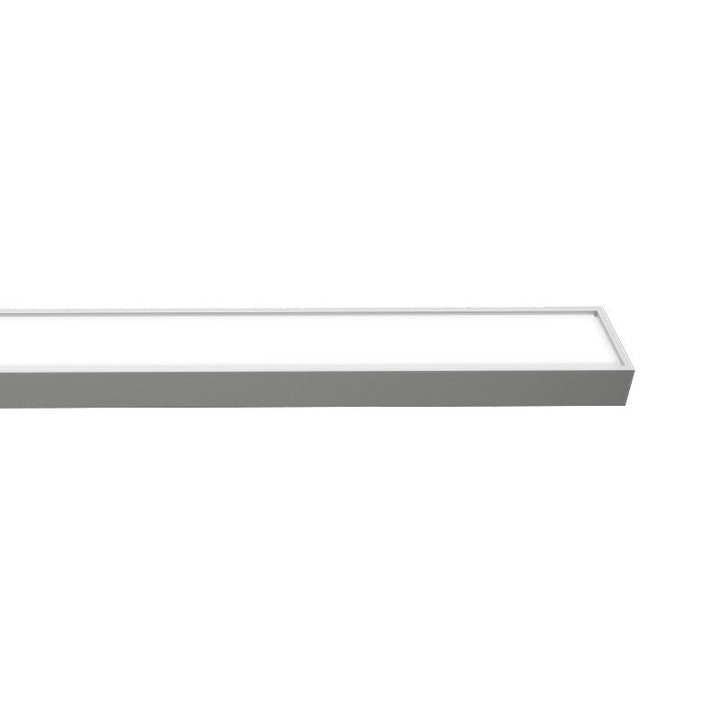

Magnetic Ultra-thin Floodlight S20 (10W )
Size: 416*30*12mm
Beam angle: 110°
Luminous Flux: >600lm

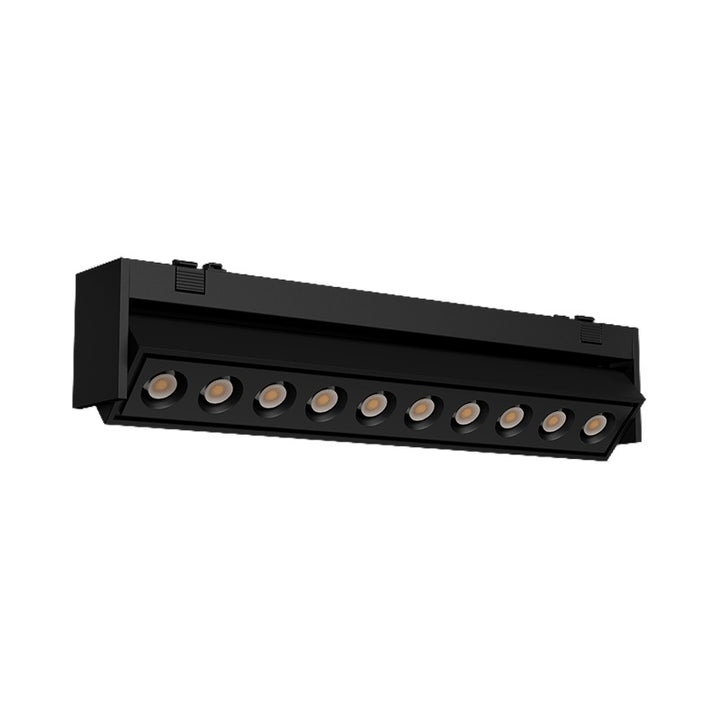

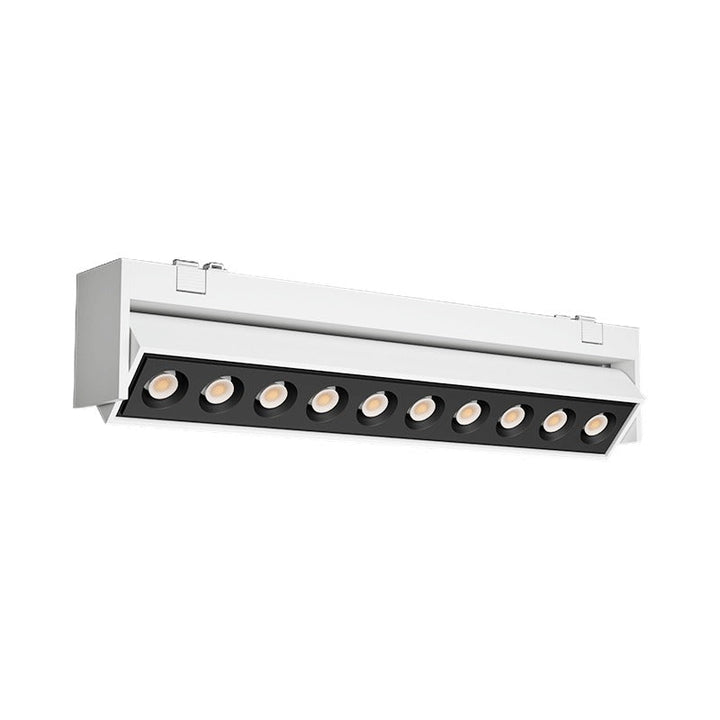

Magnetic Ultra-thin Folding Grillelight S20 (12W )
Size: 216*30*41mm
Beam angle: 24°
Luminous Flux: 720lm

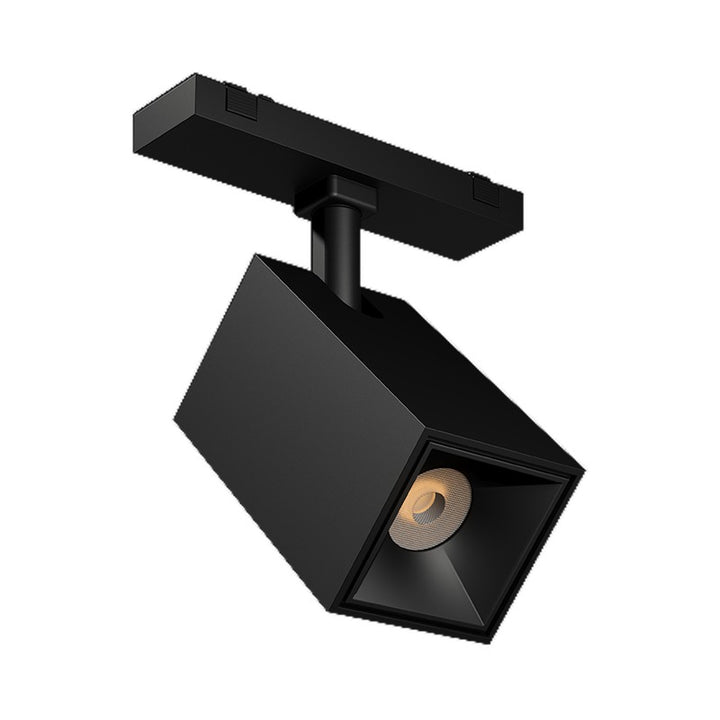

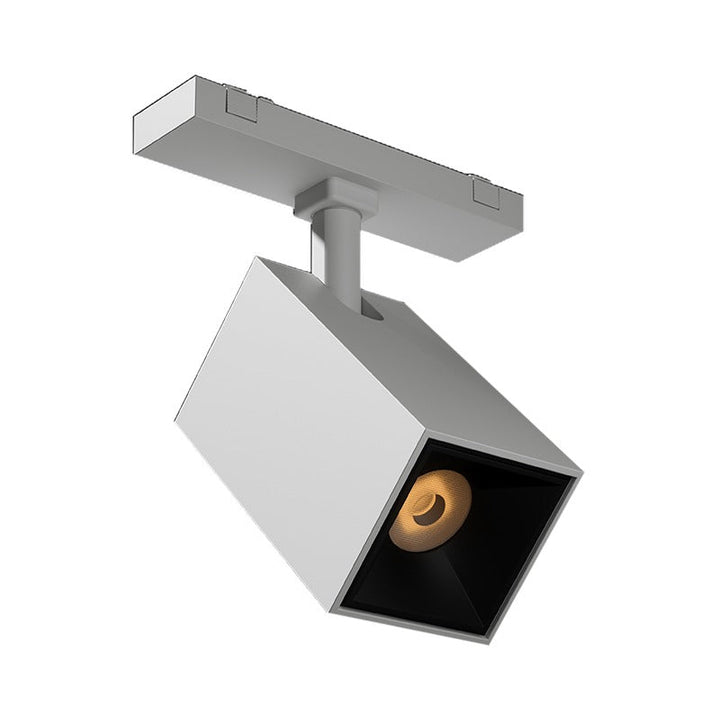

Magnetic Ultra-thin Spotlight S20 (12W )
Size: 120*54*142mm
Beam angle: 24°
Luminous Flux: 660lm

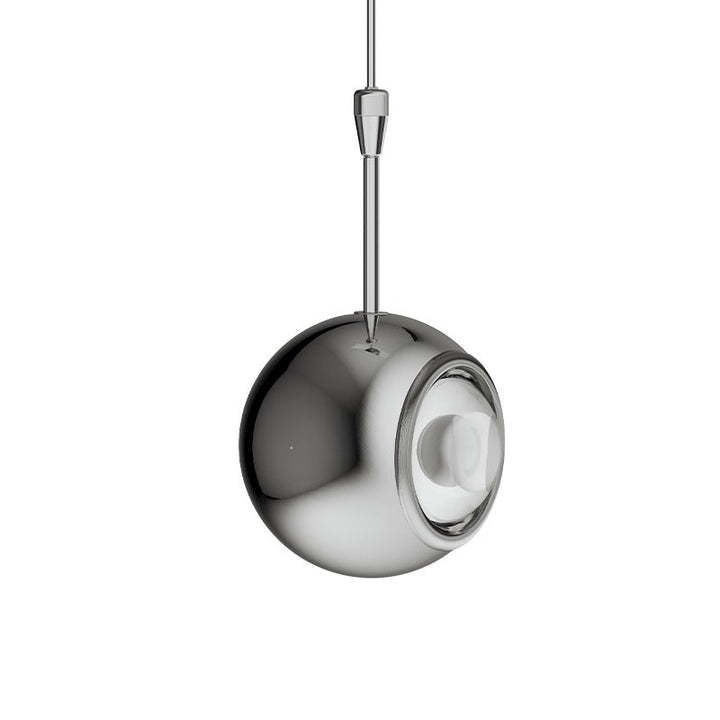

Magnetic Chandelier S20 (10W)
Size: Φ100*W120*H2000mm
Beam angle: 75°
Luminous Flux: 600lm

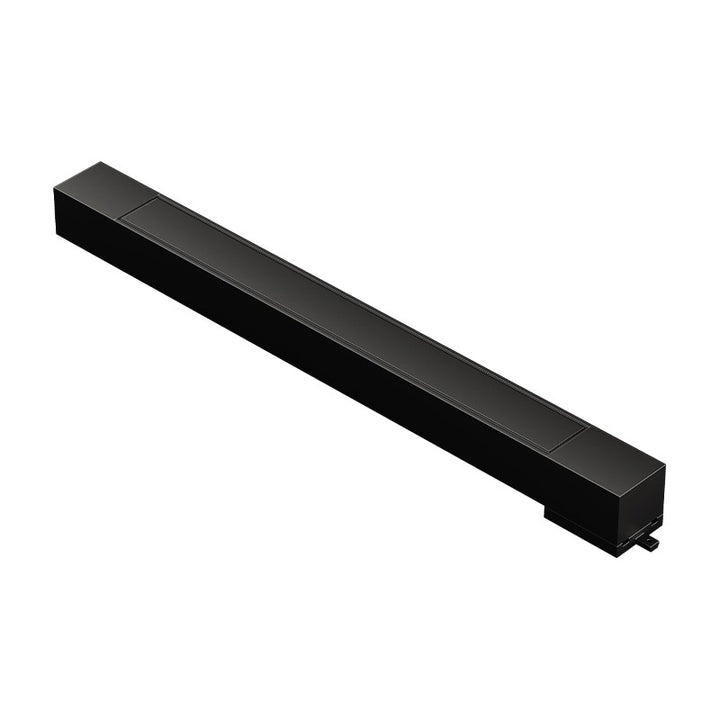

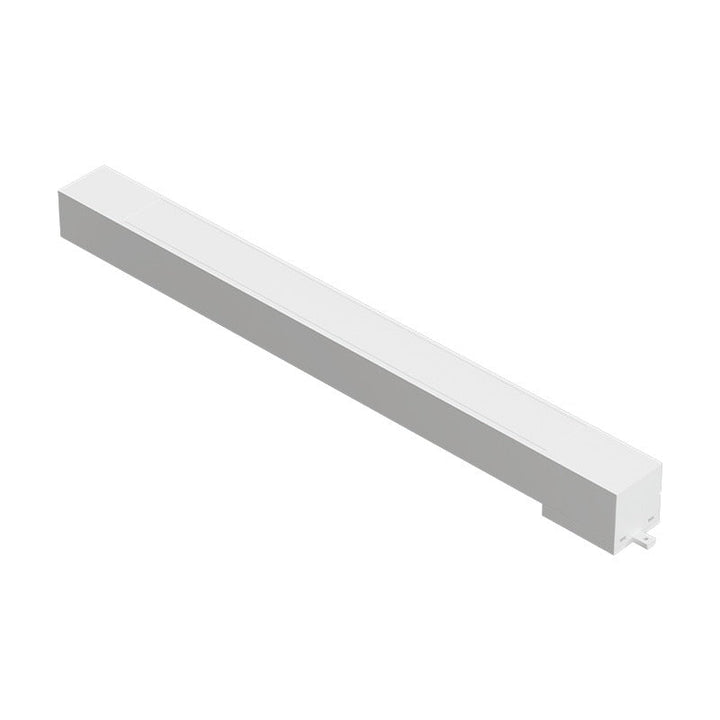

Magnetic Ultra-thin Track Power Supply S20 (150W )
Input Voltage:AC220-240V
Output Voltage:DC48v
Output: 150W
Size: 370*30*32.8mm
Reserved plan
1. Reserve 220V power supply zero live wire
2. The minimum clear space of the ceiling is not less than: 110mm
3. Hole size: φ75mm
Wiring scheme
1. Reserve 220V power supply zero live wire
