Orvibo Smart COB LED Strip Lights: Artistic Illumination for False Ceilings
Orvibo Smart LED strip lights, COB strip lights for false ceiling Smart COB ultra-bright light strips, light strip products specially used for aluminium profile light troughs. The self-contained 3M adhesive is...
Orvibo Smart LED strip lights, COB strip lights for false ceiling
Smart COB ultra-bright light strips, light strip products specially used for aluminium profile light troughs. The self-contained 3M adhesive is pasted in the light groove, and the linear lighting gives the space a more artistic atmosphere.
Product Specification of Orvibo COB Strip Lights
1. Product size: naked light strip 10mm
2. Strip length: 1m/2m/5m/roll
3. Rated power: 6.5W/m
4. Input voltage: 200-240V 50/60Hz
5. Color rendering index: Ra>90
6. Brightness range: 0% ~ 100%
7. Color temperature range: 2700K-6500K
8. Function: It needs to be used with a high-performance intelligent light strip controller to use voice, touch screen, scene switch, and APP control to achieve brightness and color temperature
LED Strip Light 5m
Light strip width: bare light strip 10mm; with rubber sleeve 12mm
Lamp bead density: 120 beads/m
Cutting distance: 60mm per cut
Packaging specifications: 5m/roll
Luminous flux: 550lm/m
Installation method: pasted into the hidden light trough
Product material: FPC, silicone casing
Compatible power supply: smart light strip controller 36W/72W/120W
Input parameters: DC 24V
Working temperature: -20℃ ~ +50℃
Relative humidity: 20 ~ 90%RH

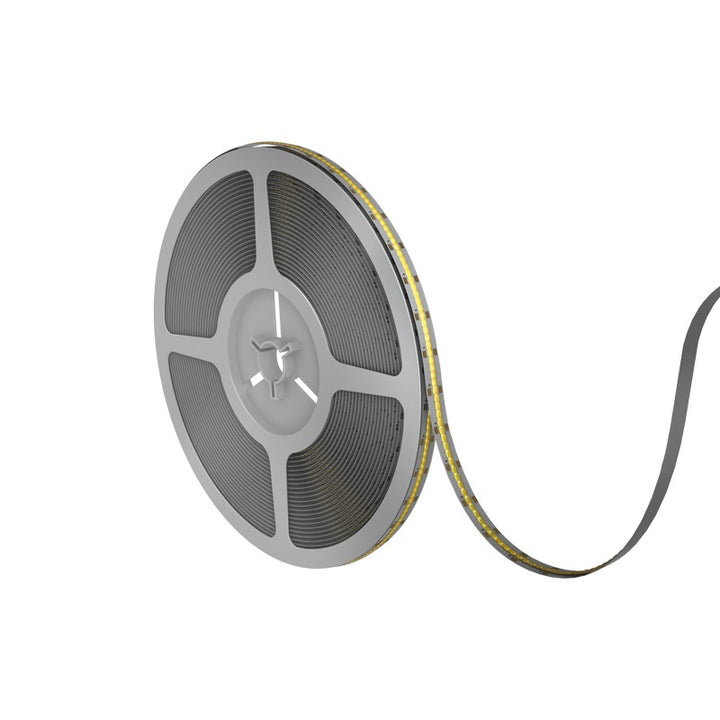

SOPRO COB Strip Light S10 5m
Rated power: 6.5W/m
Light strip width: 10mm
Lamp bead density: 672 beads/m
Cutting distance: 24mm per cut
Packaging specifications: 5m/tray
Luminous flux: 600lm/m
Installation method: 5mm depth profile without dark area; 3M adhesive
Product material: silicone
Compatible power supply: smart light strip controller 36W/72W/120W
Rated voltage: DC 24V
Working temperature: -10~+40℃
Relative humidity: 0~85%RH
Reserved plan
1. Reserve the 220v power supply zero fire ground wire.
2. The inner width of the profile is greater than 10mm, and the depth is greater than 3cm.
3. A single high-performance intelligent light controller can be connected to a light strip up to 20 meters long
Wiring scheme
1. Reserve 220V power supply zero live wire;
2. If the high-performance smart light strip controller and the light strip are not installed at the same location, it is necessary to route the RVV3*1.0 power cord to the high-performance smart light strip controller.
