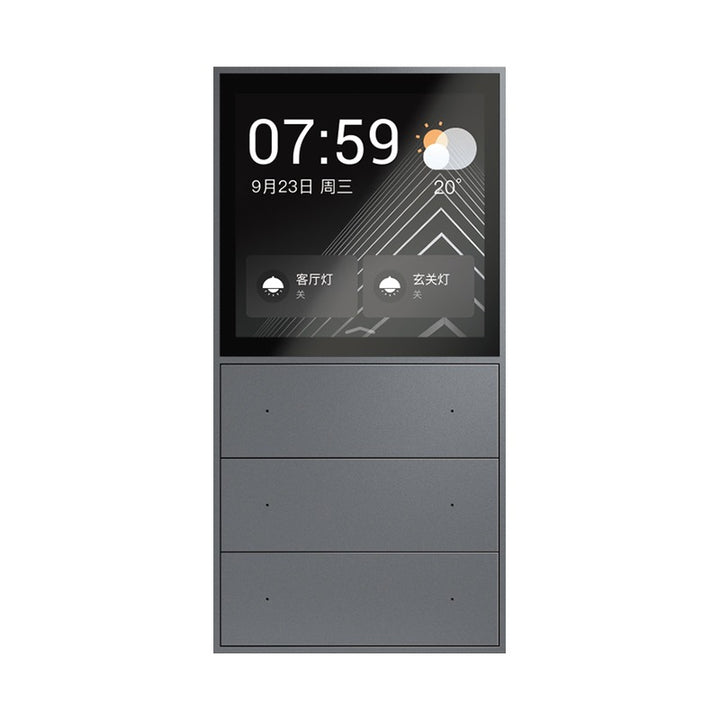

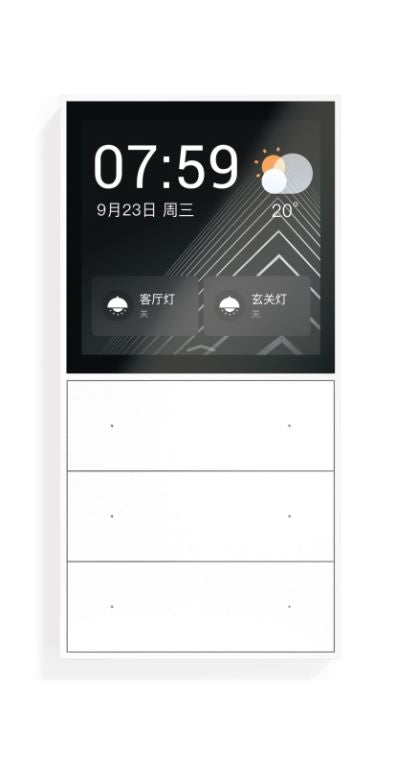

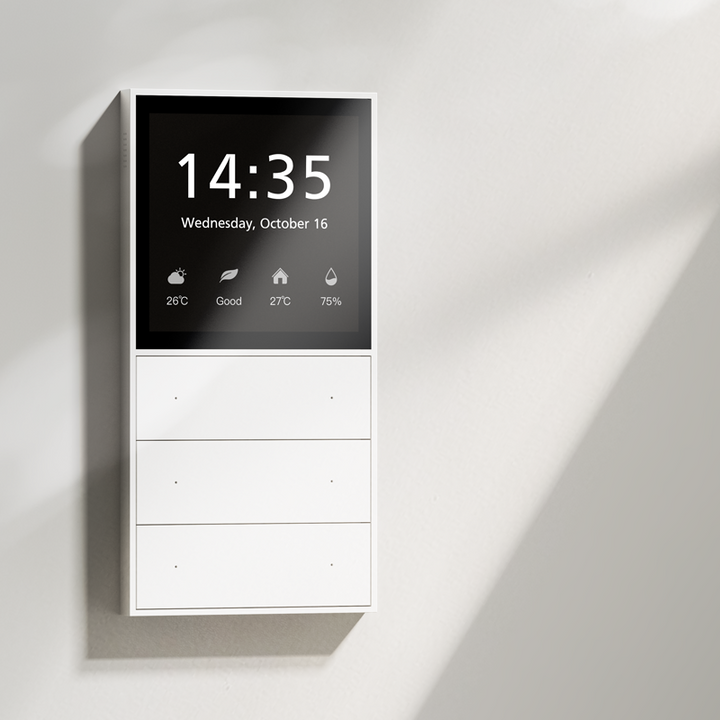

Orvibo Smart Home Control System Mixpad S Super Smart Panel

Experience the unparalleled functionality of the MixPad S flagship model, seamlessly integrated with the Matter standard. Introducing a suite of exceptionally intelligent switches for illumination, music, and various systems. The complete spectrum of control switches harmoniously coexists within your living space, effortlessly managing an array of household devices. Witness a symphony of appliances, each effortlessly orchestrated by the innovative MixPad S from Orvibo.

Simultaneously, revel in the ingeniously integrated bottom box design, eliminating the need for modifications and ensuring rapid replacements when needed.

Introducing the Orvibo MixPad S ZigBee Gateway Panel – a masterful all-in-one interface empowering you to command an array of smart devices and scenarios. This remarkable MixPad S Gateway Panel encapsulates the essence of streamlined intelligence, encompassing all things smart.

Elevating the concept of convenience, the MixPad S All-in-one Gateway Panel presents a singular platform for comprehensive smart control. Through a fusion of four interactive methods – buttons, touch screen, voice commands, and app-based manipulation – MixPad S offers an unparalleled control experience.

Dive into a new paradigm of control with MixPad S, deftly crafting control protocols for varying distances: whether at a distance, up close, or somewhere in between.

Welcome to the realm of Home AI 2.0, where the Full House Smart Home Operating System presents a reimagined AI visual experience. Behold a redefined world of color palettes, graphics, interactive elements, and fluid animations, coalescing to establish the pinnacle of home visual interactions.

Mixpad X Pro Basic parameters

Name : MixPad X Pro Panoramic Smart Voice Screen
Product specifications: 317*141*13mm (not including the thickness of the bottom box of the power supply)
Memory: 2G+8G
Light perception: support
Communication method: Zigbee 3.0, Bluetooth 5.1, Wi-Fi 2.4 GHz and 5 GHz, Ethernet
Main control: Quad-core Cortex-A55 architecture CPU, 2.0 GHz
LCD screen: 12.3 inches IPS car grade touch screen
Speaker: AAC Box speaker 2W*4
Power input: DC12V 2.5A adapter power supply
Working environment: 0~50℃, humidity ≤90%RH
Storage environment: -20~75°C, humidity ≤95%RH

Mixpad S Basic parameters

220v zero firewire protocol: Zigbee/wifi/wifi/Bluetooth Bluetooth large access: 255 pieces: 4-inch inch support supports two outputs Remote/local remote: integrated off-network: integrated integrated integrated gateway, voice speaker temperature and humidity monitoring background music host, scene panel, fresh air control, and other whole-house control center functions.

Installation
1. Pre-embed a national standard 86 bottom box, the depth is ≥ 5cm
2. It is foreseeable to add a bottom box to install the hidden switch, and the center distance between the two bottom boxes is 87mm
3. The mixing board is installed horizontally, and 86 bottom boxes are arranged with screws. The bit needs to be on the farthest side, the most side of the button
4. Recommended installation height (height from the ground): 1.35m
5. Use WiFi to connect to the Internet, and there needs to be WIFI wireless network coverage near the device

Wiring scheme
1. Reserve 220V power supply zero live wire
2. Reserve 2 circuit light control lines
