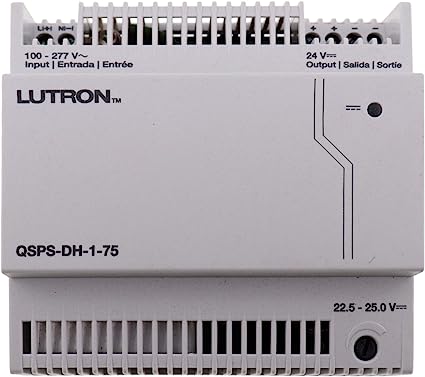

Lutron Singapore HomeWorks QS Power Supply:1 Output, 24v Din-rail

$361.00 – $472.00

QS Link Power Supply The (W)QSPS-DH-1-75 QS link power supply provides up to 75 Power Draw Units (PDUs) on a QS link. The (W)QSPS-DH-1-75 powers additional compatible accessories and devices, allowing...

Types: QSPS-DH-1-75-H

QSPS-DH-1-75-H
QSPS-DH-1-75
$472.00
SKU:
Availability : In Stock Pre order Out of stock
Description
QS Link Power Supply The (W)QSPS-DH-1-75 QS link power supply provides up to 75 Power Draw Units (PDUs) on a QS link. The (W)QSPS-DH-1-75 powers additional compatible accessories and devices, allowing them to be added to a QS system.

Specifications Model Numbers • QSPS-DH-1-75 •  WQSPS-DH-1-75 (TAA Compliant) Input Power • Nominal input voltage: 100–277 V~ • Frequency: 50/60 Hz • Current consumption, fully loaded (typical):  0.5 A (277 V~) 0.7 A (230 V~) 1.0 A (120 V~) 1.3 A (100 V~)

Power Supply Output • Nominal output voltage and tolerance:  24 V- / ±1%,  75 Power Draw Units (PDUs)* • 2.5 A SELV / PELV / NEC® Class 2 • Power Draw Units (PDUs): Supplies 75 PDUs maximum* Note: This power supply is NOT rated for use with motorized shades/window treatments. Environment • Ambient operating temperature: 32 °F to 131 °F  (0 °C to 55 °C). • Ambient operating humidity: 0% to 90% humidity,  non-condensing. Indoor use only. • Unit generates heat, maximum 28 BTU / hr • 60 °C maximum calibration point temperature.  For more information, see  www.lutron.com/TechnicalDocumentLibrary/048466.pdf Mounting • Mount using 1.38 in (35 mm) DIN rail in accordance with EN 60715 Dimensions • 3.54 in (90 mm) × 3.54 in (90 mm) × 2.40 in (61 mm) QSPS-DH-1-75 Regulatory Approvals • UL • cUL • CE compliant • NOM compliant WQSPS-DH-1-75 Regulatory Approvals • UL Efficiency • Meets the U.S. Department of Energy level VI  efficiency standard Warranty • www.lutron.com/TechnicalDocumentLibrary/ 3601201A_Commercial_Limited_Warranty.pdf
