Lutron RF Dimming Module with 0–10 V- Control

Lutron RA2 Select RF Dimming Module with 0 - 10V Control compatible with RA2 Select, RadioRA 2 and HomeWorks System capable of controlling loads such as MLV, ELV, Incandescent, Magnetic fluorescent, Electronic fluorescent and LEDs.

RF Dimming Module utilises Lutron’s Clear Connect Technology for uninterrupted communication with other devices and is easy to fit into an electrical junction box through a 21mm knockout opening.


Features of the Lutron RA2 Select RF Dimming Module

• Compatible with Lutron’s RA2 Select, RAdioRA 2 and HomeWorks Systems
• Able to control MLV, ELV, Incandescent, Magnetic fluorescent, Electronic fluorescent and LED loads
• Allows for 0 - 10V control up to 60mA

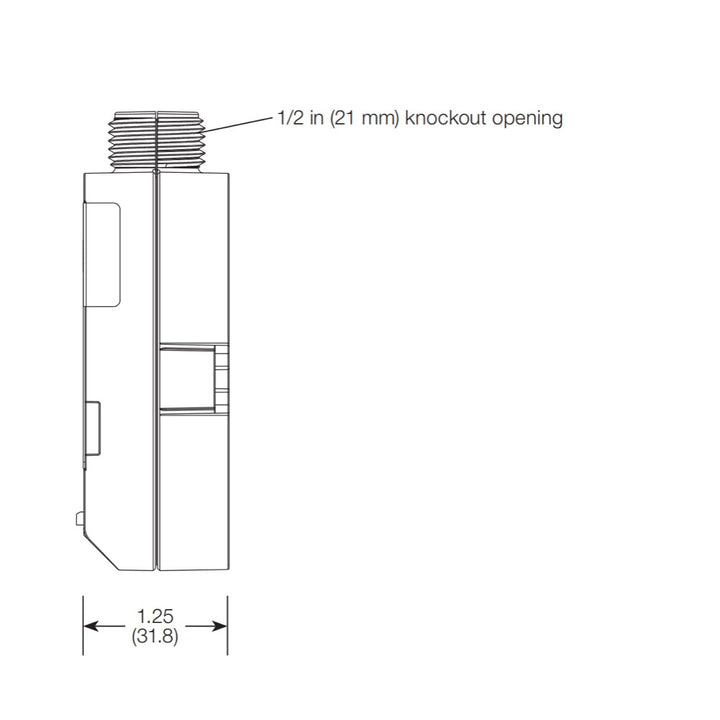

• Can be mounted to an electrical junction box with a 21mm knockout opening
• Radio Communication Range: up to 9 metres
• Clear Connect Technology - Lutron’s own frequency band provides constant undisturbed connection
• Power supply: 230V
• Amperage: 5A
• Power consumption: < 1W

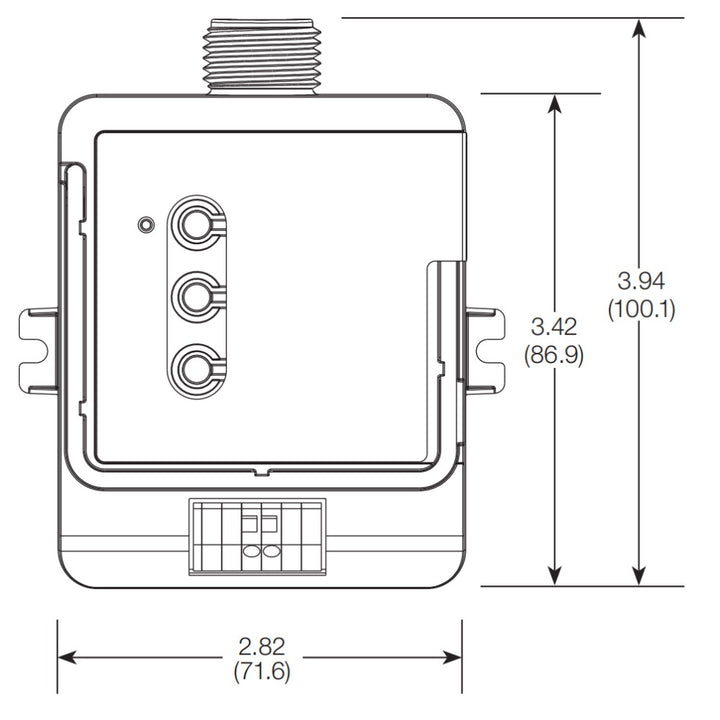

• Height: 100.1mm
• Width: 71.6mm
• Depth: 31.8mm
• Approvals: CE, TRA, CITC
• Manufacturer Number: LMK-5T-DV-B
