Lutron PM2-2B-TAW-P01:2 Button Arctic White Entrance Scene
Lutron RA2 Select System Overview

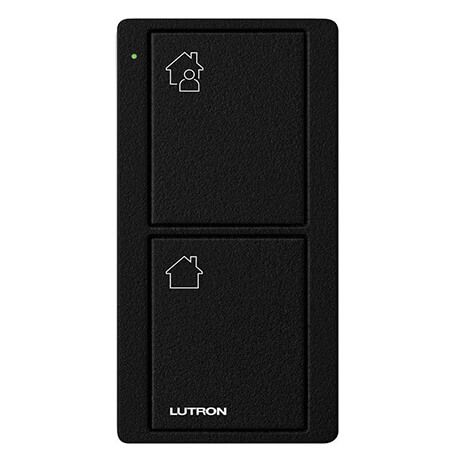

Lutron PM2-2B-TBL-P01:2 Button Black Entrance Scene

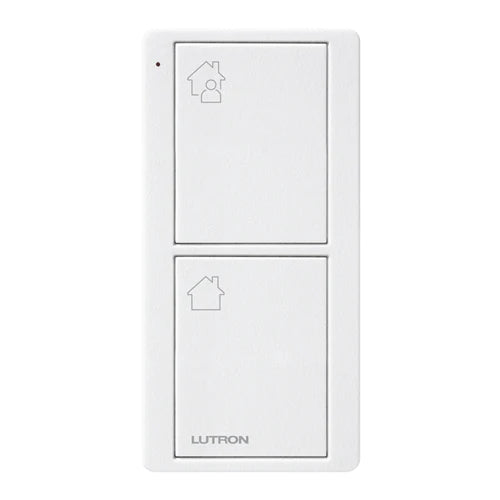

Lutron PM2-2B-TAW-P02:2 Button Arctic White Bedside Scene

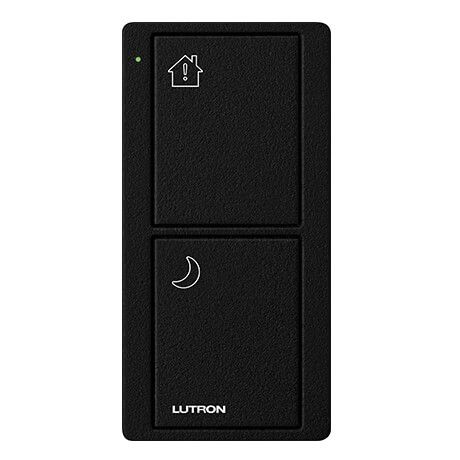

Lutron PM2-2B-TBL-P02:2 Button Black Bedside Scene
Lutron RA2 Select 2 Button Pico Wireless Scene Keypad
Lutron 2 Button Scene Dimension

Lutron RA2 Select 2 Button Pico Wireless Scene Keypad PM2-2B

$138.00

Lutron Pico 2-Button Scene Keypads The Pico wireless scene keypad is a flexible and easy to use device that allows the user to adjust multiple lights and shades to different levels...

Color: White

White
Black

Scene: Entry

Entry
Beside
Description

Lutron Pico 2-Button Scene Keypads

The Pico wireless scene keypad is a flexible and easy to use device that allows the user to adjust multiple lights and shades to different levels at the touch of a button. This battery-operated keypad requires no external power or communication wiring.

Lutron RA2 Select Model Number
PM2-2B-TAW-P01:2 Button Arctic White Entrance Scene
PM2-2B-TAW-P02:2 Button Arctic White Bedside Scene
PM2-2B-TBL-P01:2 Button Black Entrance Scene
PM2-2B-TBL-P02:2 Button Black Bedside Scene

Lutron 2 button keypad

Features of Lutron Pico 2-Button Scene Keypads

Provides easy access to scene control in the following Lutron systems:
– RA2 Select
– HomeWorks QS
Keypads available in a variety of button marking options.
Keypads available in a textured finish only.
Easy mounting reconfiguration for use as:
– Wall-mount keypad (with or without faceplate; faceplate sold separately)
– Table-top keypad (table-top pedestal sold separately)
Utilizes Lutron reliable Clear Connect RF technology.
Battery-powered. Requires no wiring.
10 year battery life 1 (one CR2032 battery included).
Provides control of lighting devices, shades, or drapes within a range of 9 m (30 ft) through walls and 18 m (60 ft) line-of-sight.
Each button is individually programmable using the system’s app or programming software.

Specifications of Lutron Pico 2-Button Scene Keypads

Regulatory Approvals (as required per geographic region)

• Lutron Quality Systems registered to ISO 9001

• CE listed

• imDA certified

• TRA certified

• RoHS compliant

• WPC Certified

Power

• Operating Voltage 3 V-

• (1) CR2032 battery (included) System Communication and Capacity

• Communicates using Radio Frequency (RF) at 868 MHz, 868 MHz Limited, 865 MHz or 434 MHz Limited channel.

• Thousands of system addresses prevent interference between systems.

• Can be assigned to control lighting devices, shades, or drapes within a range of 9 m (30 ft) through walls and 18 m (60 ft) line-of-sight.

Mounting Options and Considerations

• All RF devices should be mounted on non-metallic surfaces to ensure proper performance.

• If you wish to mount your Pico wireless control to a metallic surface, the PICO-MOUNT-1-XX-CPN6774 will be required in order to maintain proper RF

performance. For availability, please contact your local Lutron sales office.

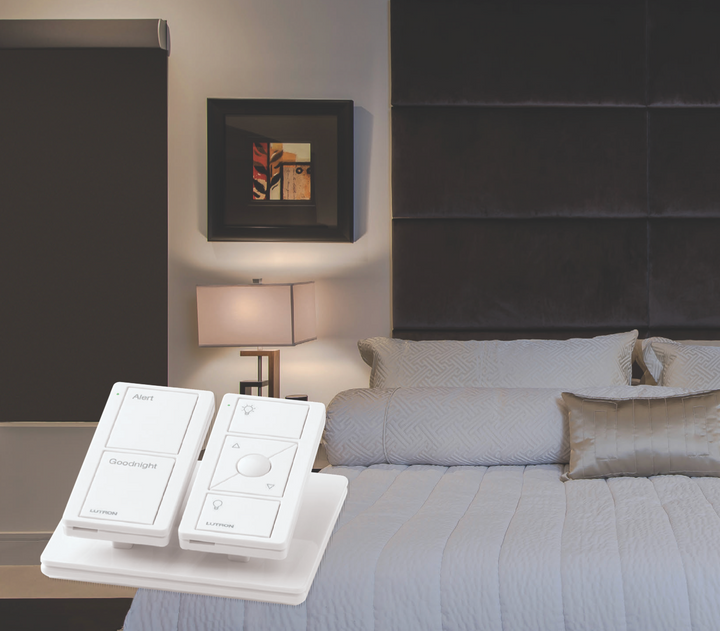

• The Pico scene keypads can be converted to table top controls using the optional pedestal. Pedestals are available in single, double and triple configurations. See page 5 for details.

• Wall mounting adhesive included. See Mounting Options section for other options.

Environment

• Ambient operating temperature: 0 °C to 60 °C (32 °F to 140 °F)

• Maximum 90% non-condensing relative humidity

• Indoor use only

Warranty

• 1 Year Limited Warranty. For additional Warranty information, please visit www.lutron.com/ TechnicalDocumentLibrary/Intl_Warranty.pdf
