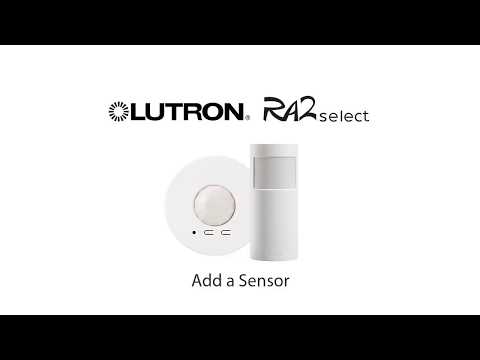

Lutron RA2 Select – Add a Sensor

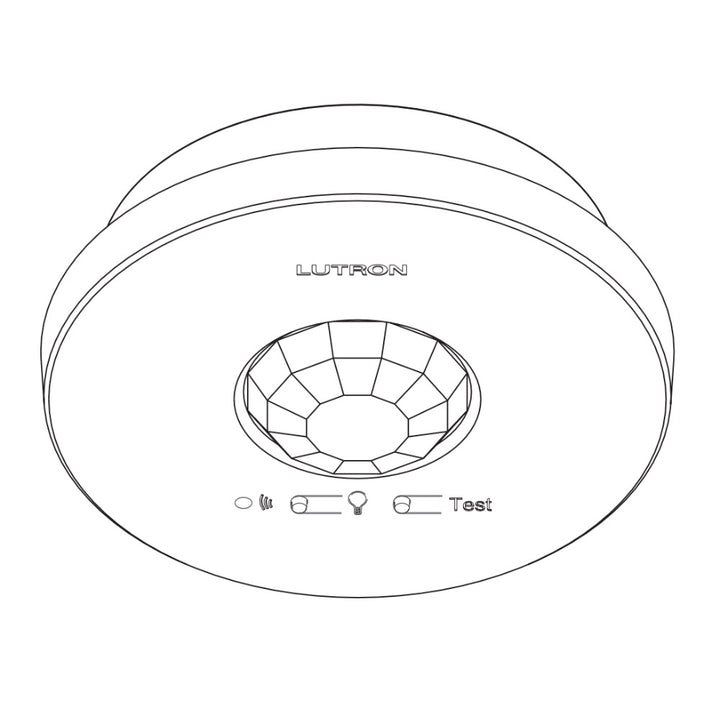

Lutron wireless occupancy sensor

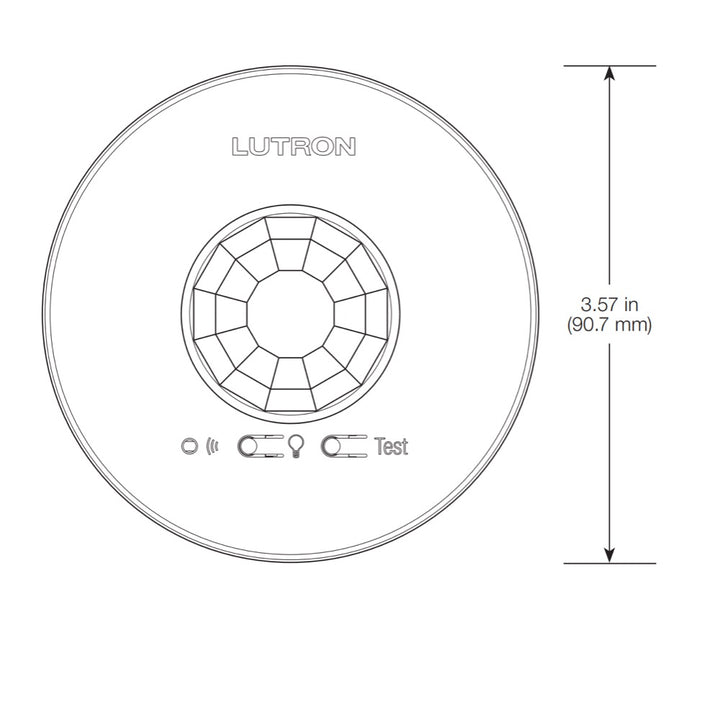

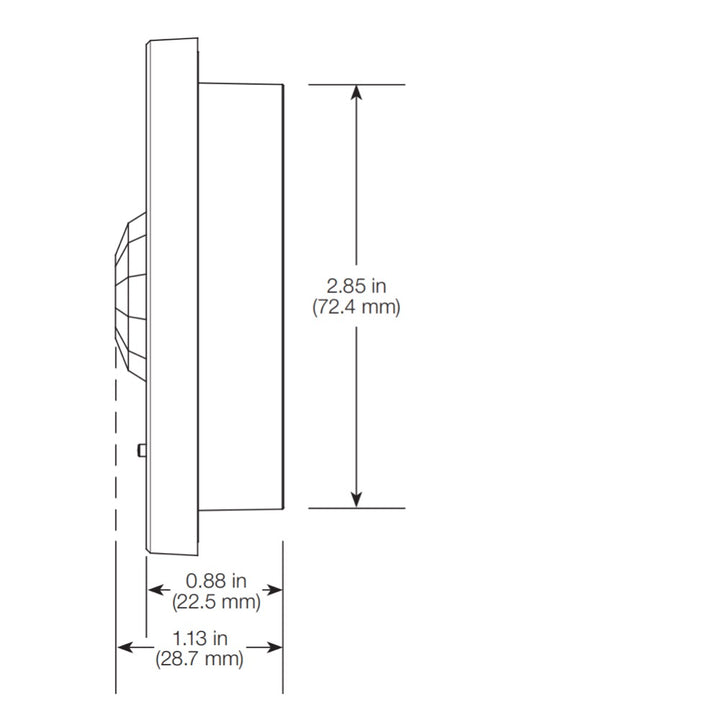

Lutron diagram wireless occupancy sensor
Lutron diagram wireless occupancy sensor

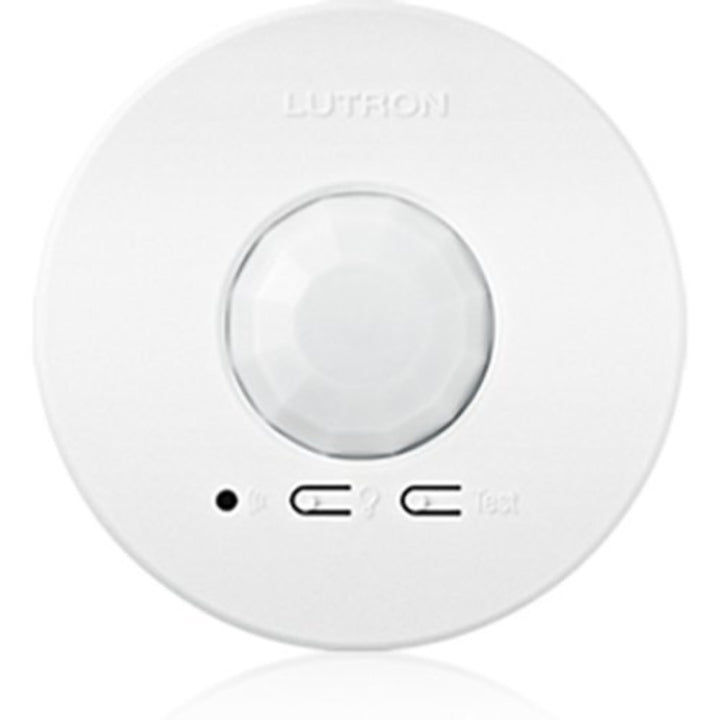

Lutron RA2 Select Wireless Occupancy Sensor LRF4-OCR2B-P-WH

$176.00

Lutron Singapore Radio Powr Savr Wireless Occupancy/Vacancy Ceiling Sensor Lutron Radio Powr Savr occupancy / vacancy sensors are wireless, battery-powered, passive infrared (PIR) sensors that automatically control lights via RF communication to...

Add to WishlistCompare
Ask a Question
SKU:
Availability : In Stock Pre order Out of stock
Categories: All Products, Lutron RA2 Select, Smart Home System
Tags: LRF4-OCR2B-P-WH, lutron, Lutron wireless occupancy/vacancy sensor, Lutron RA2, Lutron RA2 Select, Lutron RA2 Select Wireless Occupancy Sensor, lutron singapore, Lutron Wireless Occupancy Sensor, RA2 Select Wireless Occupancy Sensor, RA2Wireless Occupancy Sensor, Wireless Occupancy Sensor LRF4-OCR2B-P-WH
Description

Lutron Singapore Radio Powr Savr Wireless Occupancy/Vacancy Ceiling Sensor

Lutron Radio Powr Savr occupancy / vacancy sensors are wireless, battery-powered, passive infrared (PIR) sensors that automatically control lights via RF communication to compatible dimming and switching devices. These sensors detect the heat (IR radiation of 9.5 μm) from people moving within an area to determine when the space is occupied. The sensors then wirelessly transmit the appropriate commands to the associated dimming and switching devices to turn the lights on or off automatically. They combine both convenience and exceptional energy savings potential along with ease of installation.


Features of Lutron Singapore Wireless Occupancy Sensor

• Wireless occupancy sensor has 3 settings available: Auto-On/Auto-Off, Auto-On Low-Light/Auto-Off, and Manual-On/Auto-Off

• Auto-On Low-Light feature will turn lights on automatically only if there is less than approximately 10 Lux (1 fc) of ambient light

• Vacancy-only model available to meet California (U.S.A.) Title 24 requirements

• Uses Clear Connect technology

• Passive infrared motion detection with exclusive Lutron XCT Technology for fine motion detection

• 360˚ coverage ranges from 324 ft2 (30.2 m2) to 676 ft2 (62.4 m2), depending on mounting height

• Simple and intuitive adjustments available for Timeout, Auto-On, and Activity settings

• Supports advanced occupancy features, such as dependent occupancy groups and customizable occupied/unoccupied presets in some systems

• Multiple sensors can be added for extended coverage. Refer to product specification submittal of receiving device to determine system limits

• Lens illuminates during test mode to verify ideal locations

• Multiple ceiling-mount methods available for different ceiling materials

• Front accessible test buttons make programming easy

• 10-year battery life design

• RoHS compliant



Specifications of Lutron Singapore Wireless Occupancy Sensor

Regulatory

• Lutron Quality Systems Registered to ISO 9001:2008

Power/Performance

• Operating voltage: 3 V-

• Operating current: 14 μA nominal

• Requires one CR 123 lithium battery

• 10-year battery life

• Non-volatile memory (saved changes are stored during power loss)

Environment

• Temperature: 32 ˚F to 104 ˚F (0 ˚C to 40 ˚C)

• For indoor use only

• Relative humidity: less than 90% non-condensing

Sensor Coverage Test

• Front accessible test button

• Lens illuminates orange in response to motion during test mode and is visible from 60 ft (18 m)

Wireless Communication Test

• Front accessible test button

• Turn associated loads on and off

Timeout Options

• 1 minute*

• 5 minutes

• 15 minutes (default setting)

• 30 minutes




Lutron coverage diagram of wireless occupancy sensor
Lutron coverage diagram of wireless occupancy sensor
